PMC BB6S XBD A

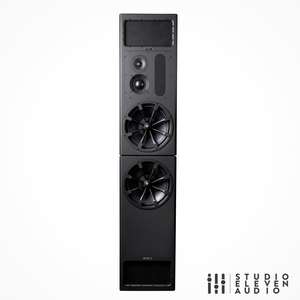

The twin-cabinet BB6S XBD-A extends the staggering performance specification of the BB6S-A, taking distortion to new lows and pushing the maximum SPL output of this system to a powerful but tightly controlled 131dB thanks to its twin 15-inch Radial™ low-frequency drivers, and creating a smoother in-room response, even in the most expansive of listening environments. The BB6S XBD-C-A is available as the dedicated centre speaker for multi-channel systems, while the dedicated LFE inputs and effortlessly extended low-end response render stand-alone subwoofers unnecessary.

As with the MB3 XBD-A, the twin XBD cabinets can be freestanding or soffit-mounted, and positioned side by side or vertically. In the latter configuration, the BB6S XBD-A gives new meaning to the concept of the stand-alone tower speaker, reaching a height when floor-mounted of nearly seven feet.

Features
  • Type: 3-way ATL™ active reference monitor
  • Frequency response: 17Hz-25kHz
  • Power per channel: 5625W (HF 275W, MF 550W, 2 x LF 2400W)
  • Effective ATL™ length: 2 x 4 metres
  • Maximum SPL: 131dB
Specifications
Available Finishes
Studio black
Crossover Frequency
380Hz & 3.8kHz
Dimensions
H 2080mm (81.8") x W 432mm (17") x D 790mm (31.1")
Drive Units
LF - 2 x PMC 380mm (15-inch) Radial driver
MF - PMC hand built 75mm soft-dome driver
HF - PMC 34mm soft-dome tweeter with acoustic radiator
Effective ATL™ Length
2 x 4m (13ft)
Frequency Response
17Hz - 25kHz
Impedance
Input Impedance 20k Bal
Input Connectors
AES3, 24-bit, 192kHz
sensitivity
Adjustable +4 to +20dBu
Weight
136kg (300lbs) each
Amplifier Power per Channe
LF - 2 x 2400Wrms
MF - 1 x 550Wrms
HF - 1 x 275Wrms
