Rupert Neve Designs 5088 High Voltage & Discrete Mixer

When 90 volts course through discrete op-amp cards, custom transformers & meticulously crafted, Class A circuitry designed by the most trusted name in audio, the difference is immediately apparent.

Different from the Inside-Out

The circuit topology of the 5088 is unprecedented. With custom transformers coupling every single input and output (including the inserts), the sweet musical performance and bulletproof isolation expected from a Rupert Neve design are assured: there is not a single compromised signal path in the entire console. For signal amplification and control, all new, high voltage, discrete op-amp cards have been developed specifically for the 5088 that eliminate crossover distortion while offering extended headroom, dynamic range, and frequency response.

The 5088 is available with channel counts in multiples of 16 (i.e. 16, 32, 48, and beyond) as well as in a special 8 Channel Frame.

Unrivaled Pedigree

The 5088 is a culmination of Mr. Rupert Neve’s vast analogue circuitry knowledge. As his first fully discrete mixing design in over 30 years, the 5088 incorporates and improves upon many of the same concepts, such as the single-sided, fully discrete amplification and complete transformer isolation that made his original designs so revered – except unlike many of those aging classics, maintenance is no longer a full time job.

The best performing Neve ever…quite an extraordinary beast.

George Shilling

Sound Without Compromise

To stay current in the recording business you must be able to continuously adapt your environment to the needs at hand. Because the 5088 is completely modular, channel strips and Portico processing modules like EQ, microphone preamplification and dynamics can be added or removed to meet constantly changing demands and eliminate the massive redundancies of consoles from yesteryear. If you don’t need it, your console doesn’t need it either.

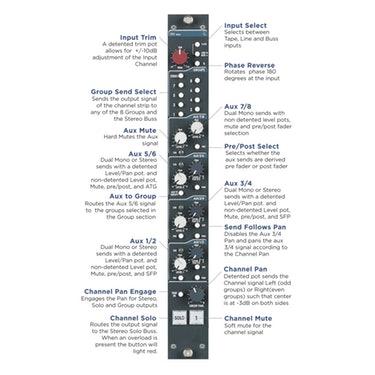

The 5088 is an expandable 16-channel line mixer that provides 8 group busses, 8 auxiliary sends, 4 stereo effects returns and a stereo output buss. That basic functionality of input and output routing, meters and faders provides a solid foundation on which you can build an analogue console to satisfy your own particular requirements, adding, for example, microphone preamplifiers, equalization and dynamics processing from the Portico line of modules – or even more input channels – to suit your facility’s needs.

High voltage, discrete op-amp cards

The all-new, fully discrete analogue architecture in the 5088 represents a culmination of Rupert’s vast analogue circuitry knowledge. Custom, high voltage and discrete op-amp cards have been designed especially for the 5088 that eliminate crossover distortion entirely. The new op amp cards offer extended headroom, dynamic range, and frequency response while generating exceptionally low noise and distortion.

“The real power of the 5088 lies hidden within the discrete, single-sided circuit topology and transformer-coupled inputs and outputs that produce 10dB greater dynamic range than any of my previous designs. The dynamic range is actually extended downwards to encompass the extremely small, often out-of-band signals – usually ignored – that go to complete our listening perspective, making sounds warmer, sweeter and fuller, apparently affecting the low and mid frequencies.

The significance of this enormous dynamic range and the frequency response that extends comfortably towards 100kHz lies in the ability of the 5088 to source, retain and mix the microscopically tiny signals that are essential to retention and enhancement of the full soundscape.”

Transform your sound

As a staunch advocate of transformer-based designs, Rupert has included custom-designed transformers on every single input and output of the 5088, electrically isolating the console with a true floating ground while also imparting the sweet sound quality of his classic, sought-after designs.
