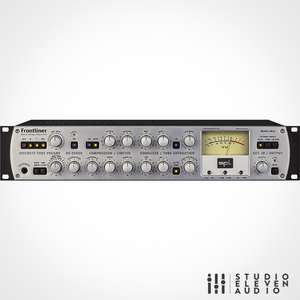

SPL Frontliner

SPLFRONT
£0.00 £1,500.00 inc. VAT
£1,250.00 exc. VAT
QTY:
ADD TO YOUR WISHLIST

Mic Preamp and Processor Channel Strip

The SPL Frontliner Pre-Amp, De-Esser, Compressor and EQ Channel Strip establishes the basis for world-class recordings. Each of its particular processing stages can be inserted into studio environments or DAWs like analog plug-ins!

The SPL Frontliner Channel Strip and Processing Unit has all tools on board to record vocals and instruments in perfect quality. Positioned even above our bestseller Channel One, it merges preamp, de-esser, EQ and compressor. The hybrid preamp with discrete transistor stage and separate tube stage combines high performance and neutrality with the option for sound coloration by enhancing the harmonic content with the switchable tube drive. The unique one-knob de-esser employs a phase cancelling technique to reduce sibilants. With three bands, the EQ section covers the complete frequency spectrum efficiently, and a tube saturation control allows to apply distortion to any signal from subtle to reckless levels. The compressor offers all classic parameters and a controllable automation of attack and release which adjusts the setting of time constants to the input signal's pretty much like a cruise control. Thanks to the individual analog I/Os, all these powerful, hi-end analog processors can be inserted into any studio by the Frontliner pilot, i. e. to use them also during mixing and mastering.

Features
  • Record vocals and instruments in perfect quality Preamp, de-esser, EQ and compressor Mixing and mastering applications Hybrid preamp with discrete transistor stage and separate tube stage Switchable tube drive.
  • Unique one-knob de-esser 3-Band EQ Tube saturation control Compressor offers all classic parameters and a controllable automation of attack and release Individual analog I/O's
Specification
Microphone input @ 13dB gain:+9dBu
Line input:+22dBu
Instrument input:+11,5dBu
De-Esser input:

+21dBu

Compressor input :+21dBu
Q-/Tube Saturation input:+21dBu
Max Output Level :

+21.5dBu

Microphone input:
+13dB to +68dB
Line input:
-20dB to +10dB
Instrument input:
+6dB to +43dB
E.I.N. Mic Preamp :127dBu (@ 68dB gain, Rs=150Ohms, 20-22kHz)
Housing (W x H x D):
482 x 88 x 261mm (Depth with controls and sockets)
Weight:
5,7kg/12,57 lbs (w/o converter & I/O transformers)


SPL Frontliner Manual Link (External Site)
