  1. GAIN: clockwise rotation yields an increase in input signal amplitude, counterclockwise rotation yields a decrease in input signal amplitude
  2. 48v: engage to turn phantom power on, disengage to turn phantom power off
  3. PHASE (Ø): engage to adjust input signal polarity by 180°, disengage to leave input signal polarity unchanged
  4. PAD: engage to reduce input signal amplitude by 13dBu, disengage to leave input signal amplitude unchanged
  5. Hi-Z: engage to use front panel Hi-Z IN as preamp source, disengage to use 500 rack XLR input as preamp source


Black Lion Audio AUTEUR MK2 500

BL-AUTEURMK2500
£0.00 £199.00 inc. VAT
£165.83 exc. VAT
QTY:
ADD TO YOUR WISHLIST

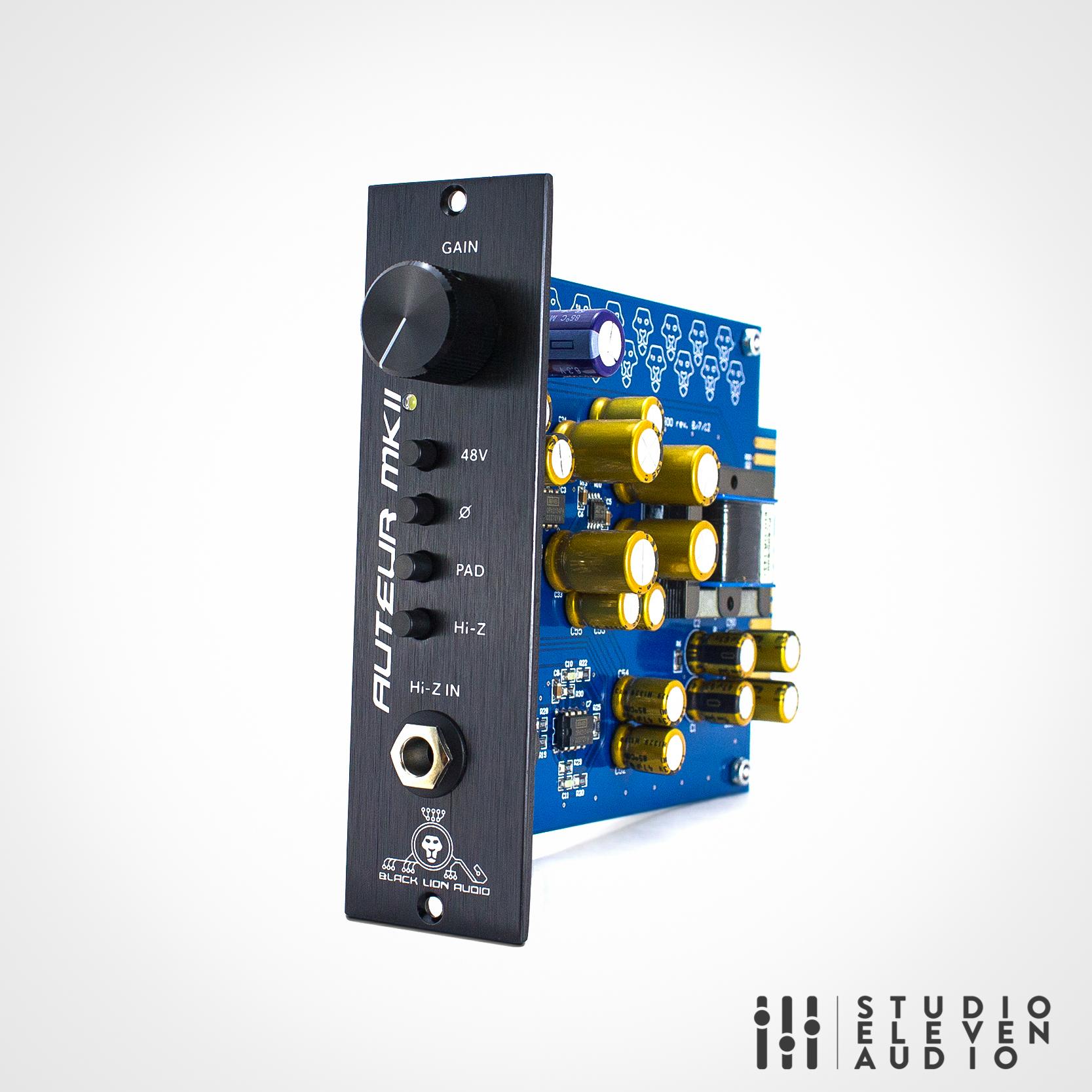

Auteur MKII 500 Mic Pre

The Auteur MKII 500 is a single channel, 500 series preamp that features phantom power, phase, a 13dBu pad, and a Hi-Z input.

The Auteur MKII 500 is one of the most “bang for your buck” 500-series preamps in existence! You get all of the sound of the 1⁄2 rack version, but with the addition of a Hi-Z input! It features an ultra-fast input stage that captures lots of detail and nuance, and a signal path transformer that adds some “beef” on the way out. Once you hear the Auteur MKII 500, you’ll want to load your 500 rack full of ‘em!

Features
  • 500 Series format (500 series rack required)
  • Single Channel
  • Ultra High-Speed Input Stage
  • Edcor Output Transformer
  • 67dB Gain
  • Phantom Power
  • Phase Switch
  • 13dBu Pad
  • Hi-Z Input
Specifications
Max Microphone Input Leve
+1dBu
Input Impedance
6000Ω
Pad
13dBu
Gain (no pad)
+16dB to +67dB
Equivalent Input Noise (noise floor)
-108dBu
THD+N (@ +4dBu output)
.0046% @ +12dBu Gain .0064% @ +24dBu Gain .012% @ +32dBu Gain .028% @ +40dBu Gain .085% @ +50dBu Gain .3% @ +62dBu Gain
Bandwidth (1kHz, 600Ω unbalanced source, unweighted)
10Hz to 30kHz
Max D.I. Input Level
+18dBu
Input Impedance Balanced
2.2MΩ
Input Impedance Unbalanced
1.1MΩ
Pad
13dBu
Gain
+16dB to +67dB
Equivalent Input Noise (noise floor)
-82dB
THD+N (@ +4dBu output)
.007% @ +12dBu .11% @ +40dBu
Bandwidth (1kHz, 600Ω unbalanced source, unweighted)
10Hz to 30kHz
Max Output Level
+28dBu
Output Impedance
600Ω
Power Supply
+/- 15v from 500 series rack
Product Dimensions
1.5” x 6.5” x 5.25”
Product Weight
.8 lbs
Shipping Dimensions
13” x 13” x 5”
Shipping Weight
3 lbs

Download the Auteur MKII 500 Mic Pre Manual
